Beamsplitter Penta Prism

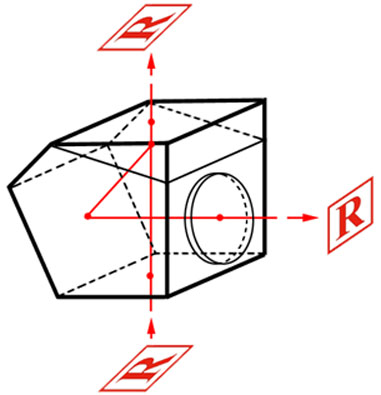

By adding a wedge and with partial reflective coating on first reflective surface, Penta Prism can be used as Beamsplitter.We supply Beamsplitter Penta Prism with standard Transmission/reflection (T/R) ratio of 10/90,50/50.Other T/R ratio is available upon request.
Specifications:
|
Material:
|
BK7 Grade A Optical Glass
|
|
Dimension (mm):
|
2.5x2.5 ~ 100x100
|
|
Dimension Tolerance (mm):
|
+/-0.2 (General), +0/-0.05 (High Precision)
|
|
90° Deviation Tolerance:
|
＜1 arc min.(General),＜3 arc sec.(High Precision)
|
|
Angle Tolerance:
|
5 arc min. (General), 3 arc sec. (High Precision)
|
|
Surface Quality:
|
80/50 (General), 10/5 (High Precision)
|
|
Flatness (per 25mm@633nm):
|
λ/2(General), λ/8 (High Precision)
|
|
Reflection:
|
＞90%@400-700nm
|
|
Beamsplitter Ratio Transmissio/Reflection:
|
10/90±5 or 50/50±5
|
|
Coating:
|
Uncoated or AR coating--Unpon Request
|
Note for Beamsplitter Penta Prism:
(1). Besides N-BK7 glass, other optical glass is available for custom-made Penta Prisms.
(2). Typical dimension Axh is from 2.5x2.5-100.0x100.0 mm.
(3). Typical deviation tolerance is 1 minute, better precision such as 30 seconds, 10 seconds, 5 seconds,
3 seconds is available.
(4). Typical reflection is >90% by Al coating, other metal coating such as Ag, Cu, or High Reflection
Dielectric Coating is available.
(5). Typical Beamsplitter Ratio Transmission/Reflection is 10/90±5 or 50/50±5, other Ratio is available.
(6). Besides uncoating, Anti-Reflective(AR) coating is available upon request..
