Rhomboid Prisms

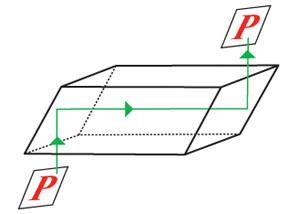

Rhomboid prisms (off-set prism) are commonly used to displace a laser beam without changing its direction. In imaging applications, rhomboid prisms will displace the optical axis without inverting the image.
Applications:
• Imaging Optical System
• Optical Measurement System
• Optical Switches
• Beam Alignment
Specifications:
|
Material:
|
BK7 Glass or other optical glass upon request
|
|
Dimension (mm):
|
upon request.
|
|
Dimension Tolerance (mm):
|
+/-0.2 (General), +0/-0.02 (High Precision)
|
|
Angle Tolerance:
|
± 3 arc minutes(General), ±5arc secs (High Precision)
|
|
Flatness (per 25mm@633nm):
|
λ(General), λ/10 (High Precision)
|
|
Clear Aperture:
|
>80% (small size),>90%(large size)
|
|
Surface Quality:
|
60/40 (General), 20/10 (High Precision)
|
|
Bevel (mm):
|
0.1-0.5
|
|
Coating:
|
Uncoated ,AR coating upon request
|
Other material ,sizes, tolerance and coatings are also available upon request.
