Polarizer Optics
Polarizer Optics

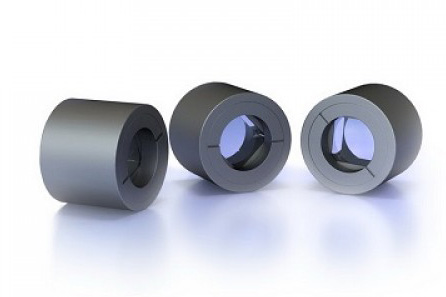

Glan Taylor Polarizer
Glan Taylor prism polarizer is made of two same birefringent material prisms that are assembled with an air space. It has a length to aperture ratio less than 1.0 makes it a relatively thin polarizer...

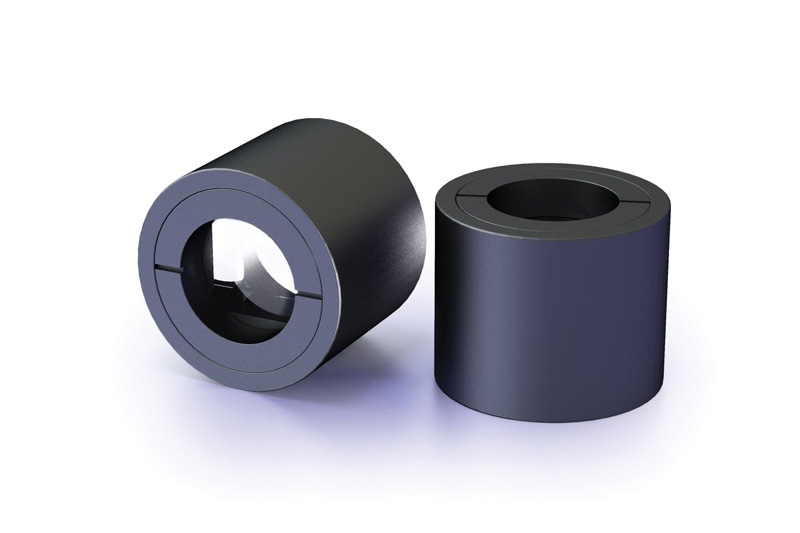

Glan Laser Polarizers
Glan Laser prism polarizer is made of two same birefringent material prisms that are assembled with an air space. The polarizer is a modification of the Glan Taylor type and is designed to have less r..

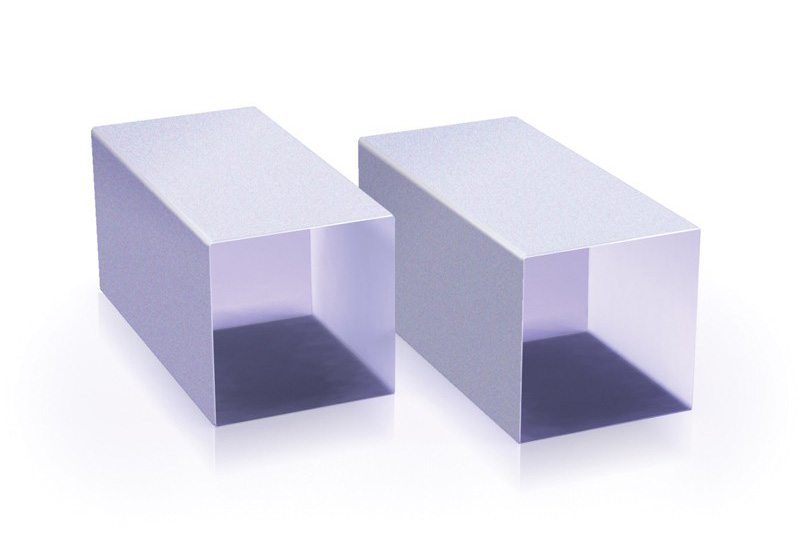

High Transmission Glan Laser Polarizers
UPT specially designed a high transmission Glan Laser Polarizer for online_ordering which requires high transmission. The specially designed polarizer is based on the Brewster Cut crystal, which can i..

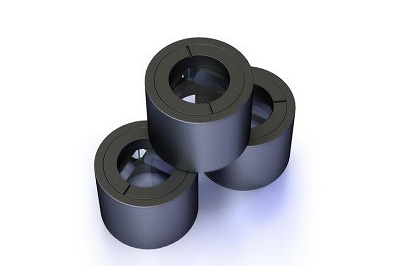

Glan Thompson Polarizers
Glan Thompson polarizer is made of two calcite prisms or a -BBO prisms cemented together. Two types of Glan Thompsons are available. One is the standard form and the other is the long form. Their leng..

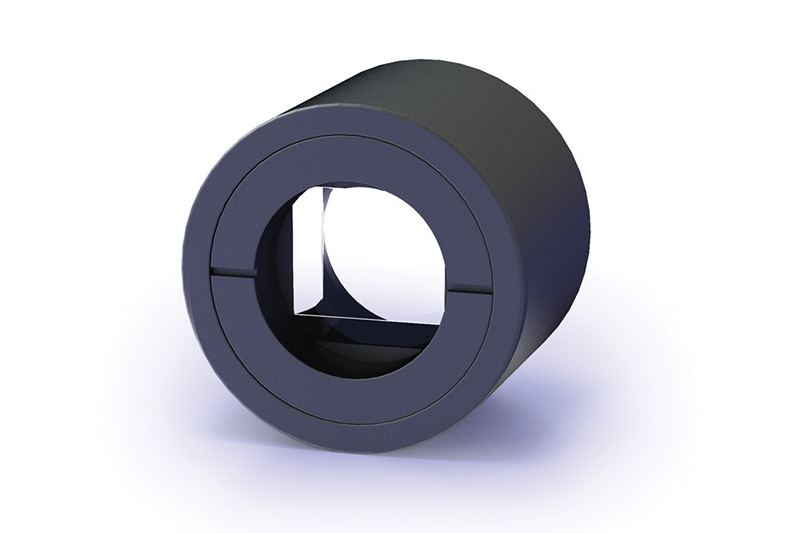

Broadband Glan Thompson Polarizer( 200-3300nm)
UPTBroadband Glan Thompson Polarizer is made of two a-BBO prisms cemented together. this broadband polarizer has a wide rang of wavelength from 200nm to 3300nm. Also the broadband polarizer has a wide..

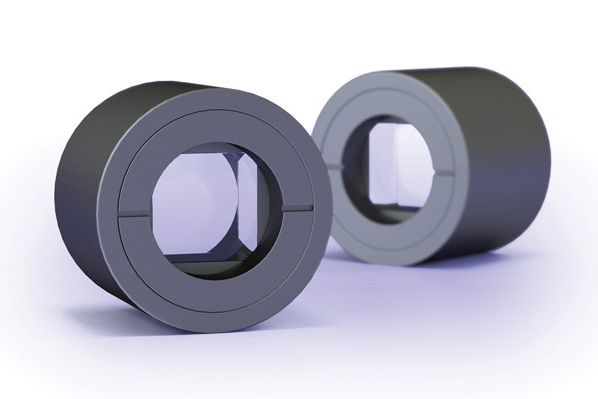

Glan Thompson Polarizing Beamsplitter Cubes
The Glan Thompson polarizer have been arranged to permit the output of the s-polarized beam at 45 deg from the straight through p-polarized beam. They provide high polarization purity and high transmi..
Wollaston Polarizers
Wollaston polarizer is made of two birefringent material prisms that are cemented together. The deviations of the ordinary and extraordi..
Rochon Polarizers
Rochon polarizer is one of the earliest designs, which is made of two birefringent material prisms cemented together. Both ordinary and extraordinary beams propagate collinearly down the optic axis in..
Polarization Beam Displacers
Separate an Input into Two Orthogonally Polarized Beams Yttrium Orthovanadate Substrate is Transparent from 488 nm to 3.4 m Calcite Substrate is Transparent from 350 nm to 2.3 m 2.7 mm and 4.0 mm..
Polarization Beamsplitter
Polarization Cube Beamsplitters split randomly polarized beams into two orthogonal,linearly,polarized components-S-polarized light is reflected at a 90deg.Angle while P-polarized light is transmitted...
C-Polarizer
C-Polarizer consists of an YVO4 Beam displacer and l/2 Waveplate. C-Polarizer can split extraordinary ray and ordinary ray at certain spacing, then rotate the polarization status of two beams accordin..
