Dove Prisms

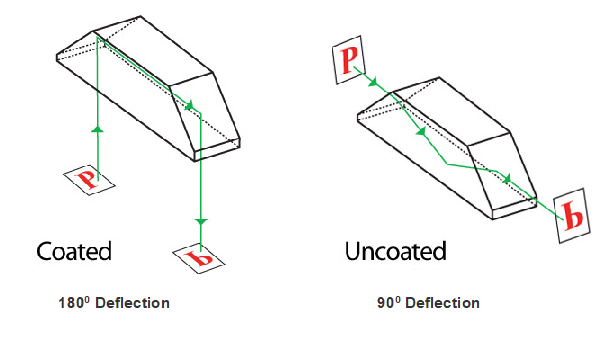

The Dove Prism is also called Image Rotator. The prism rotates the image without changing the direction of the input beam, which is parallel to hypotenuse. Rotation of the prisms in relation to the subject causes double rotations of the image. Dove Prism should be used in the parallel beam.
Specifications:
|
Material:
|
BK7 Glass or other optical glass upon request
|
|
Dimension (mm):
|
upon request.
|
|
Dimension Tolerance (mm):
|
+/-0.2 (General), +0/-0.05 (High Precision)
|
|
Angle Tolerance:
|
± 3 arc minutes(General), ± 3 arc secs (High Precision)
|
|
Flatness (per 25mm@633nm):
|
λ(General), λ/10 (High Precision)
|
|
Clear Aperture:
|
>80% (small size),>90%(large size)
|
|
Surface Quality:
|
60/40 (General), 20/10 (High Precision)
|
|
Bevel (mm):
|
0.1-0.5
|
|
Coating:
|
Uncoated ,Dielectric HR coating or Metal coating on reflection surfaces is available. AR coating
|
Note: other material ,sizes, tolerance and coatings are also available upon request.
