Broadband Glan Thompson Polarizer( 200-3300nm)
UPTBroadband Glan Thompson Polarizer is made of two a-BBO prisms cemented together. this broadband polarizer has a wide rang of wavelength from 200nm to 3300nm. Also the broadband polarizer has a wide..
ProductsPolarization OpticsPolarizer OpticsBroadband Glan Thompson Polarizer( 200-3300nm)
Broadband Glan Thompson Polarizer( 200-3300nm)
UPT Broadband Glan Thompson Polarizer is made of two a-BBO prisms cemented together. this broadband polarizer has a wide rang of wavelength from 200nm to 3300nm. Also the broadband polarizer has a wide acceptance angle whose field angle Fo and Fe is shown in below figure.
|

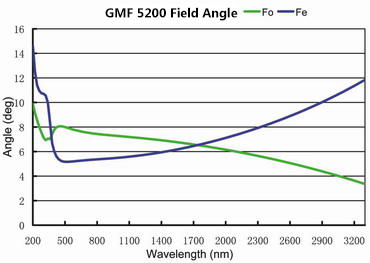

Angular Field vs wavelength
|

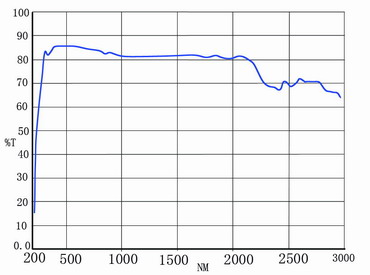

Transmission (T%) vs Wavelength
|
 |
 |
|
a-BBO:200～3200
|
GMP5200
|
|
Material:
|
a -BBO
|
|
Wavelength Range:
|
200-3300 nm
|
|
Extinction Ratio:
|
<5x10 -6
|
|
Parallelism:
|
<1 arc Min
|
|
Surface Quality:
|
20-10
|
|
Beam Deviation:
|
< 3 arc minutes
|
|
Wavefront Distortion:
|
l/4@633nm
|
|
Damage Threshold:
|
>200 MW/cm 2
|
|
Coating:
|
Single MgF2
|
|
Mount:
|
Black Anodized Aluminium
|
Standard Products
|
P/N#
|
Extinction Ratio
|
Angular Field (deg)
|
CA φa (mm)
|
O.D. φd (mm)
|
L+/-0.1 (mm)
|
|
GMP5206
|
<5x10-6
|
See above
|
5
|
15
|
14
|
|
GMP5208
|
7
|
25.4
|
17
|
||
|
GMP5210
|
9
|
25.4
|
21
|
||
|
GMP5212
|
11.4
|
25.4
|
26
|
||
|
GMP5215
|
13.5
|
30
|
31
|
||
|
GMP5220
|
18
|
38
|
40
|
Note：Custom designs for other sizes and coatings are also available upon request
