LiNbO Crystal is widely used as frequency doublers for wavelength > 1 m and optical parametric oscillators (OPOs) pumped at 1064nm as well as quasi-phase-matched (QPM) devices. Due to its large Electro-Optic ((E-O) and Acousto-Optic (A-O) coefficient, LiNbO crystal is the most commonly used material for Pockel Cells, Q-switches and phase modulators, waveguide substrate, and surface acoustic wave (SAW) wafers, etc.
Crystal Structure
|
Trigonal, space group R 3c
|
Cell Parameters
|
a = 0.515, c = 13.863, Z = 6
|
Melting Point
|
1255 +/-5℃
|
Curie Point
|
1140 +/-5℃
|
Mohs Hardness
|
5
|
Density
|
4.64 g/cm 3
|
Absorption Coefficient
|
~ 0.1%/cm @ 1064 nm
|
Solubility:
|
insoluble in H 2 O
|
Relative Dielectric Constant
|
ε T11/ε 0 : 85
|
ε T33/ε 0 : 29.5
|
|
Thermal Expansion Coefficients at 25℃
|
||a, 2.0 x 10 -6 /K @ 25℃
|
||c, 2.2 x 10 -6 /K @ 25℃
|
|
Thermal Conductivity
|
38 W /m /K @ 25℃
|

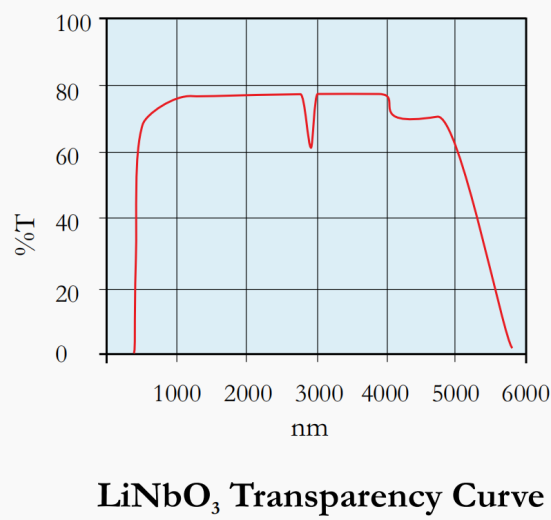

Transparency Range
|
420 - 5200 nm
|
Refractive Indices
|
n e = 2.146, n o = 2.220 @ 1300 nm
|
n e = 2.156, n o = 2.322 @ 1064 nm
|
|
n e = 2.203, n o = 2.286 @ 632.8 m
|
|
Optical Homogeneity
|
~ 5 x 10 -5 /cm
|
Sellmeier Equations (l in mm)
|
n o 2 (l) = 4.9048+0.11768/(l2- 0.04750) - 0.027169l2
|
n e 2 ( l) = 4.5820+0.099169/( l2 - 0.04443) - 0.021950 l2
|
|
NLO Coefficients
|
d 33 = 34.4 pm/V
|
d 31 = d 15 = 5.95 pm/V
|
|
d 22 = 3.07 pm/V
|
|
Electro-Optic Coefficients
|
γT 33 = 32 pm/V, γS 33 = 31 pm/V
|
γ T 31 = 10 pm/V, γ S 31 = 8.6 pm/V
|
|
γ T 22 = 6.8 pm/V, γS 22 = 3.4 pm/V,
|
|
Half-Wave Voltage, DC
|
3.03 KV
4.02 KV
|
Electrical field ||z, light ^ z:
|
|
Electrical field ||x or y, light || z:
|
|
Damage Threshold
|
200 MW/cm 2 (10 ns)
|
Efficiency NLO Coefficients
|
d eff =5.7pm/V or~14.6xd 36 (KDP) for frequency doubling 1300 nm;
|
d eff =5.3pm/V or~13.6xd 36 (KDP) for OPO pumped at 1064nm;
|
|
d eff =17.6pm/V or~45xd 36 (KDP) for quasi-phase-matched structure;
|
Tolerance of dimension
|
Dimension+/-0.1 mm, L: ±0.1mm
|
Flatness
|
λ/8 @ 632.8nm
|
Wavefront distortion
|
<λ/4@ 632.8nm
|
Surface quality
|
10/5 per MIL-O-13830A
|
Parallelism
|
10″
|
Perpendicularity
|
5′
|
Bevel/chamfer
|
<0.1mm@45deg.
|
Chips
|
<0.1mm
|
Angle Tolerance
|
△θ≤±0.5°, △φ≤±0.5°
|
Coating
|
AR/P- coating Upon request
|
