BeamSplitter Plates

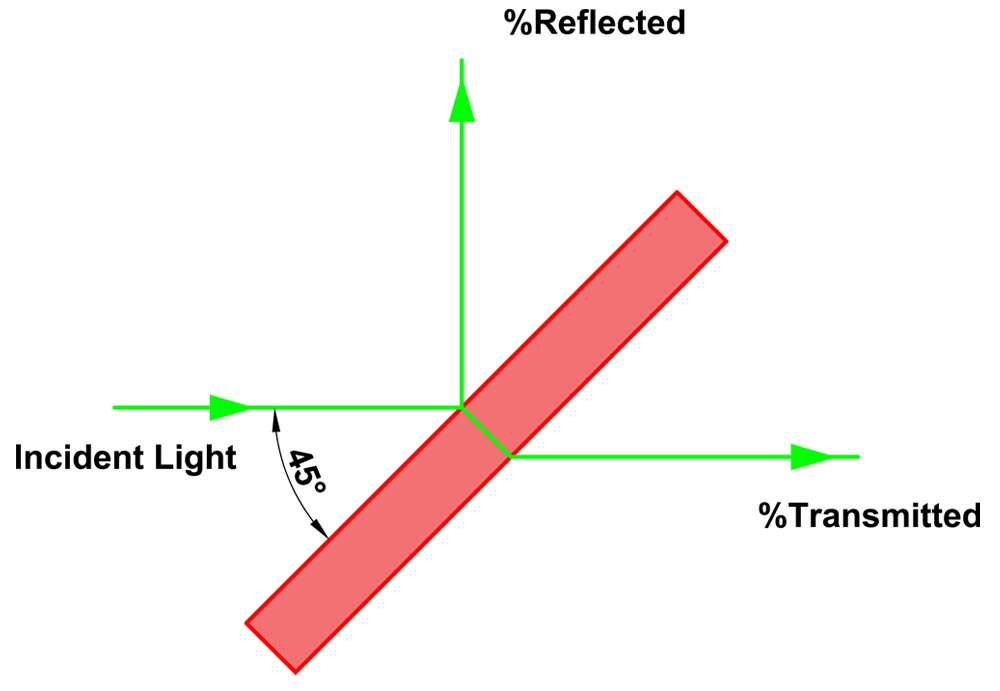

Beamsplitter Plates are a type of Beamsplitter used in many life science, imaging, or laser applications. Beamsplitter Plates are used to split incident light into two separate components. When positioned at a 45° angle of incidence, a portion of the light striking the Beamsplitter Plate is transmitted, while another portion is reflected.
Beamsplitter Plate
Specification:
Material: ---N-BK7 or H-K9L grade A optical glass
Dimension Tolerance:------- ±0.2mm
Thickness Tolerance: --------±0.2mm
Flatness: --- λ /4 @ 632.8 nm
Surface Quality: -----60/40 scratch and dig
Parallelism: -------------<1 arc minute
T/R:-------------50/50±5%, for random polarization
-----------------------------------T=(Ts+Tp)/2, R=(Rs+Rp)/2
Coatings: (Incidence angle: 45 degree)
Surface1: ----------------------partial reflection coating
Surface2: ----------------------Anti Reflection coating
Standard Coating wavelength:
Narrow Band: ---------488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
Broadband: -------------450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
Specification:
Material: ---N-BK7 or H-K9L grade A optical glass
Dimension Tolerance:------- ±0.2mm
Thickness Tolerance: --------±0.2mm
Flatness: --- λ /4 @ 632.8 nm
Surface Quality: -----60/40 scratch and dig
Parallelism: -------------<1 arc minute
T/R:-------------50/50±5%, for random polarization
-----------------------------------T=(Ts+Tp)/2, R=(Rs+Rp)/2
Coatings: (Incidence angle: 45 degree)
Surface1: ----------------------partial reflection coating
Surface2: ----------------------Anti Reflection coating
Standard Coating wavelength:
Narrow Band: ---------488, 532, 632.8, 650, 808, 850, 980, 1064, 1310, 1550 nm
Broadband: -------------450-650, 650-900, 900-1200, 1200-1550, 1500-1610 nm
Note: Other sizes, split ratio and coating are available upon request.
